Description
[pdf] [/pdf]
| Type | Insertion and Extraction Kit |
| Chip Package Type | DIP IC, PLCC |
| Pin Count for Insertion | 14-16, 24-28 |
| Pin Count for Extraction | 8-24, 24-40 |
| Dimensions | 8.6 in x 7.4 in x 1 in |
| Part Number | WFM-100 |

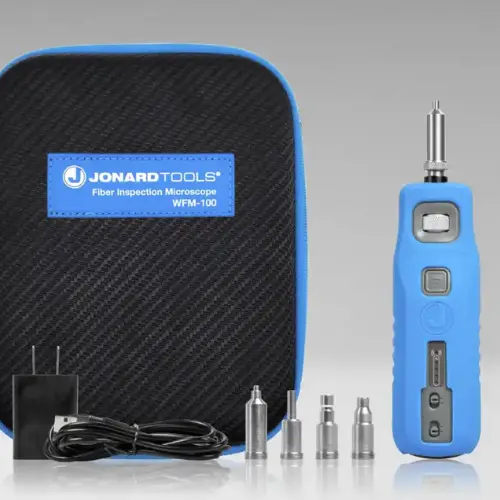

Wireless Fiber Inspection Microscope
Description:
This portable Wi-Fi end-face probe delivers clear, high-resolution images of fiber optic connector ferrules in real time on a smartphone or tablet. It also features a one-touch automatic analysis function that instantly generates and records a pass/fail report.
Features:
⦿ Compatible with male and female PC/UPC SC, ST, FC, and LC fiber connectors and ports—includes 5 versatile adapter tips for comprehensive inspection.
⦿ One-Press Auto-Analysis Function—instantly generates and saves pass/fail reports for fast and accurate assessments.
⦿ High-Resolution Camera with 200x Magnification—delivers sharp, detailed images directly to your smart device.
⦿ Free Mobile App—supports both Android and iOS platforms for real-time viewing and analysis.
⦿ USB Connectivity Option—Easily connects to OTDR-1500 or other compatible devices via USB for flexible operation.
Kit includes:
• Wireless Fiber Inspection Scope
• 2.5 mm FC/SC/ST (PC/UPC) Male Adapter
• 2.5 mm FC/SC/ST (PC/UPC) Female Adapter
• 1.25 mm LC (PC/UPC) Male Adapter
• 1.25 mm LC (PC/UPC) Female Adapter
• USB-C Charging/Data Cable
• Power Charger
• User Instruction Manual
• Protective Carrying Case
