About:
The EXTREME Category 5e Component-Rated UTP Jack is designed to be used with all Leviton QUICKPORT compatible products. The jack includes patented Retention Force Technology™ which promotes consistent performance over the life of the system. It includes unique pair separation towers allowing for quicker and easier terminations. The jack is in a 180-degree configuration with the punch field in the back, allowing for rear termination.
Also Known as:
Cat 5e QUICKPORT Jack, Cat 5 QUICKPORT Jack, Cat 6 QUICKPORT Jack QUICKPACK.
Specification:
• Module Type : Category 5e
• Module Style : Connector
• UPC : 078477208137
• Color : Brown
• Shielding : UTP
Features:
• Terminates 26- and 22 AWG solid conductors
• Capable of multiple re-terminations
• Gas-tight IDC connectors prevent corrosion
• Dual-layer T568B/T568A wiring label simplifies punchdown
• Patented Retention Force Technology protects tines from damage and increases system longevity
• Pair Separation Tower design facilitates separation of conductors and minimizes untwisting
• 180-degree configuration allows for rear termination
• Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization

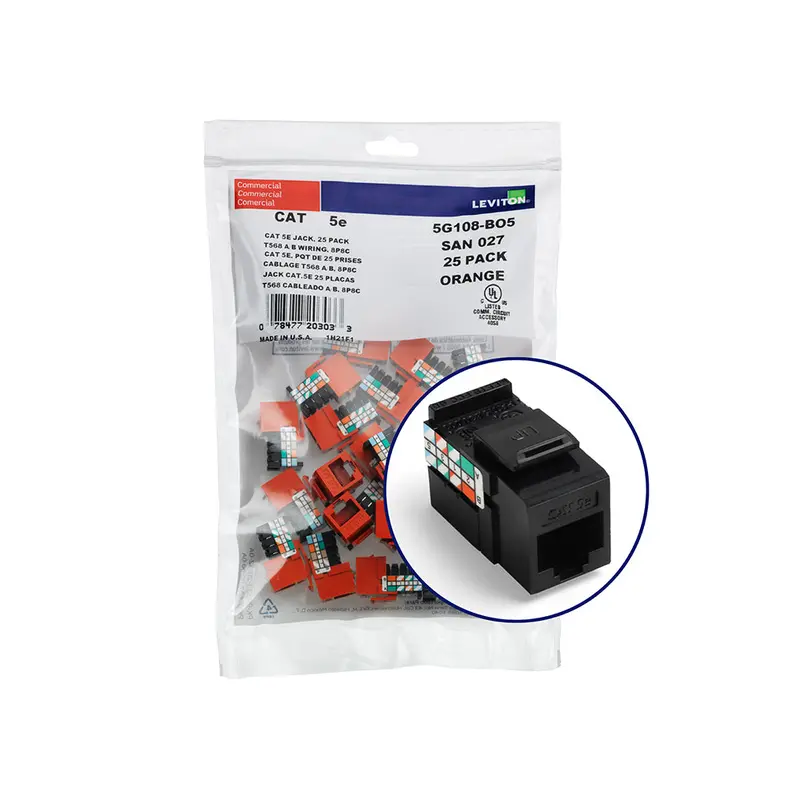

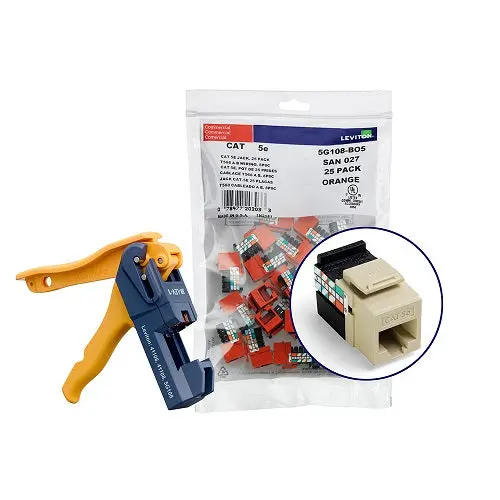

• Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool
• Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
• ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
