LC QuickPort Duplex Adapter – 10G OM3/OM4 with Zirconia Ceramic Sleeve

Description

[pdf] [/pdf]

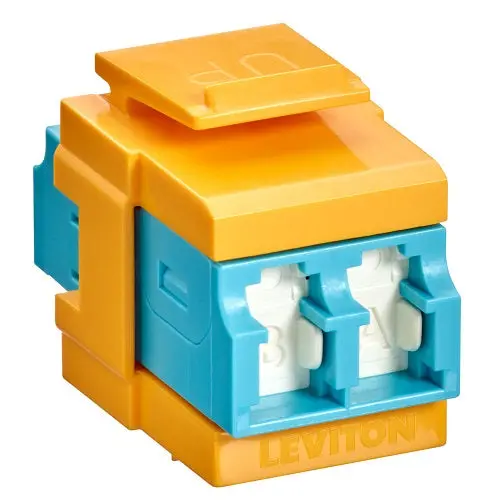

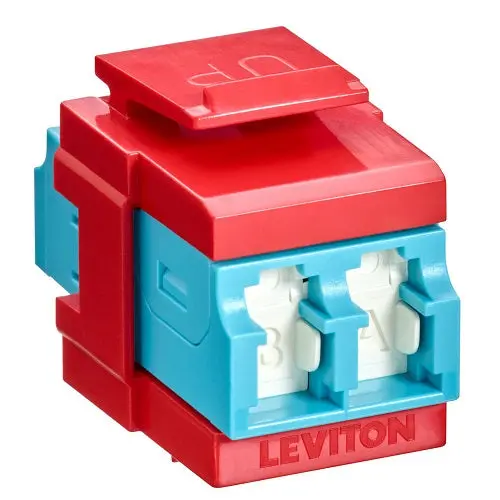

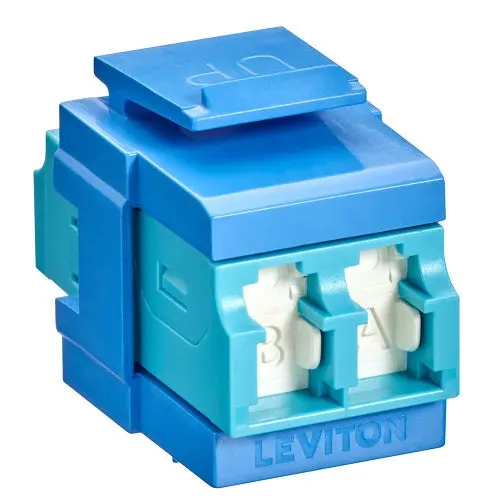

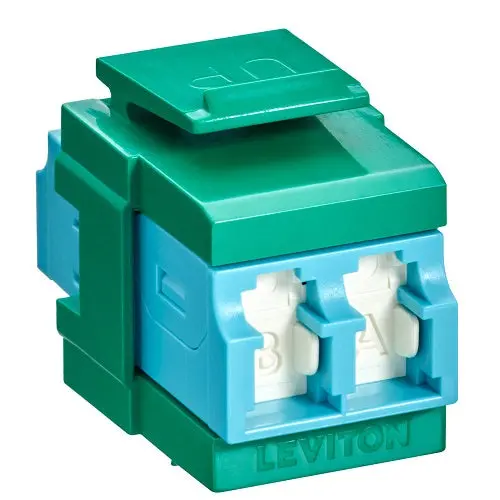

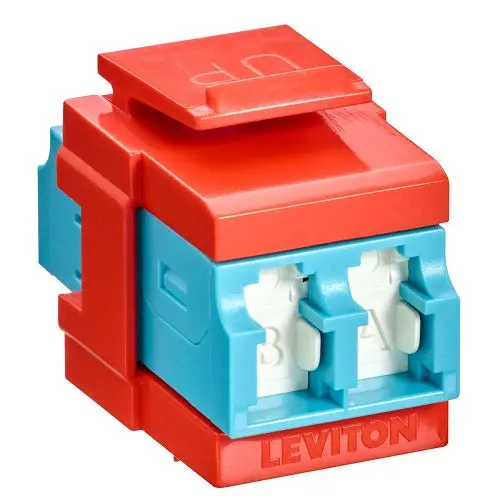

LC Adapter QuickPort Duplex 10G LOMM Zirconia Ceramic Sleeve

DESCRIPTION :

QuickPort Fiber Optic Adapters provide connectivity for workstation cabling termination on single-mode and multimode fiber cable. QuickPort bulkhead modules snap into any housing with the QuickPort name: flush- and surface-mount outlets, Multimedia Outlet System (with adapter), patch panels, and patch blocks.

FEATURES :

⦿ QuickPort adapters snap into QuickPort panels or modules

⦿ Internal patented shutters on LC adapters eliminate the need for dust plugs to reduce waste, speed deployment, and ensure safer installation

⦿ Shuttered LC adapter door will illuminate when a VFL is used for fiber traceability

⦿ Shuttered LC adapter is IP5x-rated for limited protection against dust ingress

⦿ Use in permanent or temporary applications

⦿ ST, SC, and LC QuickPort Adapters are available with zirconia ceramic or phosphor bronze sleeves, and are compatible with single-mode, multimode, and laser optimized (LC only)

⦿ MTP Adapter key up to key down for single-mode applications.

PHYSICAL SPECIFICATIONS

Dimensions : See page two
Materials QuickPort Housing : Snap-in module bodies are high-impact, fire-retardant plastic rated UL 94V-0
ST Fiber Adapter : Single-mode: zirconia ceramic sleeve Multimode: phosphor bronze sleeve
SC Fiber Adapter : Single-mode: zirconia ceramic sleeve Multimode: phosphor bronze sleeve
LC Fiber Adapter :Single-mode: zirconia ceramic sleeve LOMM: zirconia ceramic sleeve Multimode: zirconia ceramic sleeve
