Description
[pdf] [/pdf]
| Type | Insertion and Extraction Kit |
| Chip Package Type | DIP IC, PLCC |
| Pin Count for Insertion | 14-16, 24-28 |
| Pin Count for Extraction | 8-24, 24-40 |
| Dimensions | 8.6 in x 7.4 in x 1 in |
| Part Number | WK-7 |
IC Insertion and Extraction Kit
Description:

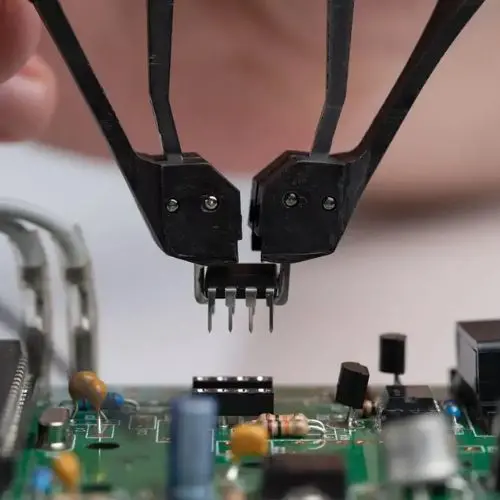

This tool kit is specifically designed to simplify the installation and removal of DIP IC and PLCC chips on circuit boards. All tools are CMOS-safe and equipped with grounding lugs where necessary to prevent static damage.
Kit includes:
• EX-1 DIP IC Extractor (8-24 pins)
• EX-2 DIP IC Extractor (24-40 Pins)
• EX-5 PLCC Extractor, ESD Safe
• MOS-1416 Insertion Tool (14-16 Pins)
• MOS-2428 Insertion Tool (24-28 Pins)
