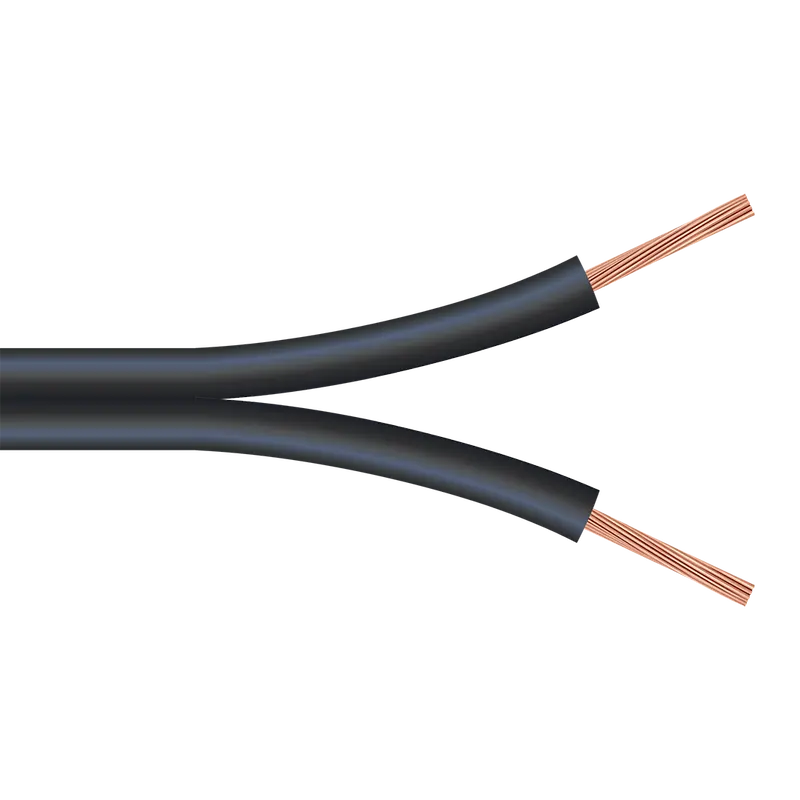

16/2 Underground Landscape Lighting Low Energy Circuit Copper 30v
Applications:
Underground Landscape Lighting Low Energy Circuit Copper 30v is created for lighting systems and landscaping. The electrical wire is primarily implemented for direct burial. The landscape cable is rated for low-voltage uses at 30 volts. The maximum temperature for this electrical cable is 60° C.
Also Known As:
16/2 Landscape Lighting Wire, 16/2 Landscape Lighting Cable, 16/2 Low-Voltage Cable, 16/2 Low-Voltage Copper Cable,16/2 Low-Voltage Copper Wire, 16/2 Direct Burial Wire, 16/2 Direct Burial Cable, 16/2 Landscape Cable, 16/2 Low-Voltage Lighting Wire, 16/2 Low-Voltage Lighting Cable, 16/2 Low Voltage Wire for Led Lights, 16/2 Outdoor Lighting Cable, 16/2 Outdoor Low Voltage Wire, 16/2 Low Voltage Outdoor Cable, 16/2 Direct Burial Low Voltage Wire, 16/2 Outdoor Landscape Lighting Junction Box Cable, 16/2 Outdoor Lighting Wire Gauge, 16/2 Low Voltage Wire For Landscape Lighting,16/2 Cable Low Voltage Lighting
Standards:
- UL 1493
- RoHS
- Direct burial-approved
Construction:
Conductor:
Soft annealed stranded copper according to ASTM B-174/ B-172. The conductors possess superior flexibility because of the stranding. The cables are stripped and split without any issues, thanks to the mid rip between the conductors. The conductors are laid flat and parallel.
Insulation:
Black PVC insulation is resistant to acids, alkalis, grease, chemicals, sunlight, and abrasion.
Specification:
- Gauge :16
- No. Conductors: 2
- Stranding: 26/30
- O.D. Inches: .310 x .150
- New Weight lb/1000FT: 34 lbs
|
Compatible with Manufacturer |
|
| Service Wire Co : | ULE16/2 |
| AWC : | 02309 |
| Southwire : | 552131 |
[/short]
Applications:
Suitable for use in direct burial landscaping and lighting
applications
Description:
Underground Low Energy circuit Cable (Landscape Lighting Wire) is a superior multi-purpose product. A tough integral insulation and jacket of PVC covers the conductors and provides excellent abrasion, crush, chemical, oil and moisture resistance. A “Mid rip” between conductors provides for easy splitting and stripping.
• UL listed Underground Low Energy Circuit Cable 30 Volts
• Direct Burial rated
• Extra flexible stranding
• Resistant to acids, alkalis, grease and chemicals
• Sunlight and Abrasion Resistant
Standards:
UL 1493; RoHS Compliant
Construction:
Conductor: Soft annealed extra flexible stranded copper per ASTM B-174 (#16, 14, 12 and 10 AWG) and ASTM B-172 (#8 AWG)
Assembly: Two conductors are configured flat and parallel. Black PVC is applied directly over the conductors. Conductors are identified with ridges on the surface of the insulation.
Temperature: 60° C
Voltage: 30
