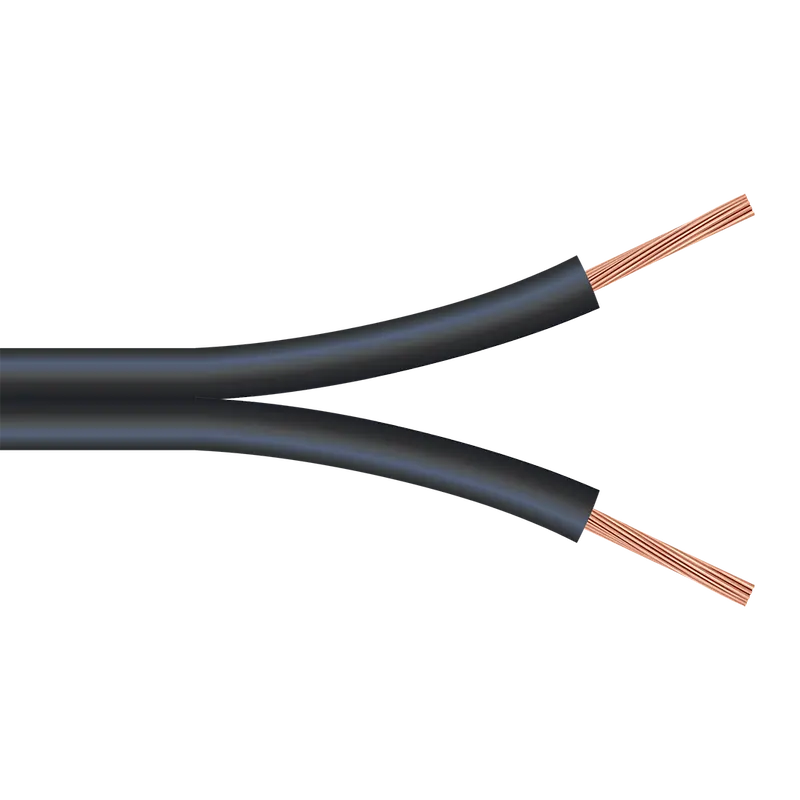

1000-Foot 14/2 Copper Low-Voltage Landscape Lighting Cable – 30V

Description

[pdf] [/pdf]

[short]

14/2 Underground Landscape Lighting Low Energy Circuit Copper 30v

Applications:

Underground Landscape Lighting Low Energy Circuit Copper 30v is created for lighting systems and landscaping. The electrical wire is primarily implemented for direct burial. The landscape cable is rated for low-voltage uses at 30 volts. The maximum temperature for this electrical cable is 60° C.

 Also Known As:

14/2 Landscape Lighting Wire, 14/2 Landscape Lighting Cable, 14/2 Low-Voltage Cable, 14/2 Low-Voltage Copper Cable,14/2 Low-Voltage Copper Wire, 14/2 Direct Burial Wire, 14/2 Direct Burial Cable, 14/2 Landscape Cable, 14/2 Low-Voltage Lighting Wire, 14/2 Low-Voltage Lighting Cable, 14/2 Low Voltage Wire for Led Lights, 14/2 Outdoor Lighting Cable, 14/2 Outdoor Low Voltage Wire, 14/2 Low Voltage Outdoor Cable, 14/2 Direct Burial Low Voltage Wire, 14/2 Outdoor Landscape Lighting Junction Box Cable, 14/2 Outdoor Lighting Wire Gauge, 14/2 Low Voltage Wire For Landscape Lighting,14/2 Cable Low Voltage Lighting

Standards:

• UL 1493
•  RoHS
• Direct burial-approved

Construction:

Conductor:

 Soft annealed stranded copper according to ASTM B-174/ B-172. The conductors possess superior flexibility because of the stranding. The cables are stripped and split without any issues, thanks to the mid rip between the conductors. The conductors are laid flat and parallel.

Insulation:

Black PVC insulation is resistant to acids, alkalis, grease, chemicals, sunlight, and abrasion.

Specification:

• Gauge : 14
• No. Conductors:2
• Stranding: 41/30
• O.D. Inches: .326 x .163
• New Weight lb/1000FT: 46 lbs


Compatible with Manufacturer
Coleman :	55267
General Cable :	2310
Omni Cable :	LV11402
Service Wire & Co :	ULE14/2
AWC :	02310
Southwire :	552132
Priority Wire & Cable :	LVL-14

[/short]
