Description
| Voltage Frequency | AC 115V 60Hz |
| Output Power | 1.5HP |
| Input Power | 2.5HP |
| Max. Flow | 31.7GPM |
| Max. Head | 276 ft / 84.12 m |
| Discharge Size | NPT1.25″ |
| Control Mode | Built-in |
| Net Weight | 34.28 lbs / 15.55 kg |
| Product Dimensions | 35.43 x 4.03 x 4.03 in / 900 x 102.4 x 102.4 mm |
High Flow, High Lift Performance :

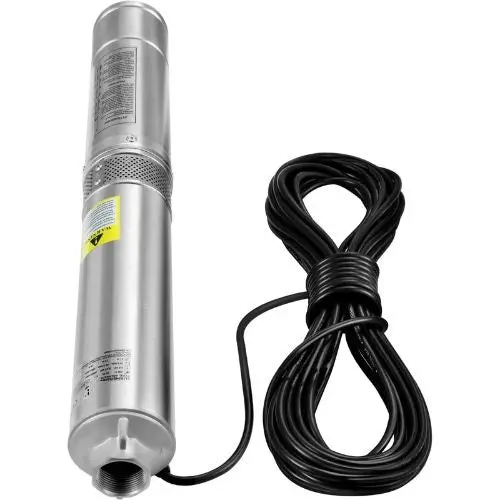

This deep well submersible pump delivers strong, efficient performance with a 2.5HP input and 1.5HP output. It supports a maximum lift of 276 ft (84.12 m) and a flow rate of up to 31.7 GPM—providing powerful water pressure and a steady, reliable water supply for a wide range of applications.
Integrated, Space-Saving Control Box :
Designed with a built-in control box integrated into the pump body, this unit simplifies installation and minimizes external wiring. Its compact, all-in-one structure makes it ideal for confined or hard-to-access spaces.
Durable Pure Copper Motor :
The pump is powered by a pure copper wire motor for stable and consistent water flow. Built-in overheat protection ensures safety by automatically shutting off the motor in abnormal conditions, preventing damage and extending the pump’s service life.
Rugged, Corrosion-Resistant Construction :
Made to last, the pump features a full stainless steel housing, including the outlet and connection components, with stainless steel filtration mesh. Its IP68 waterproof rating and rust-resistant design protect the motor and keep debris out for long-term, trouble-free use.
Versatile Water Supply Solution :
Engineered to handle various water sources, this pump is ideal for agricultural irrigation, livestock watering, residential water supply, pond maintenance, and river or canal extraction.
Important Usage Guidelines :
For newly drilled wells, place gauze over the inlet to prevent sediment intake.
Ensure the well casing’s internal diameter exceeds the pump diameter by at least 0.39 in (10 mm) for proper fit.
Do not operate the pump dry or under low water conditions to prevent motor damage.
